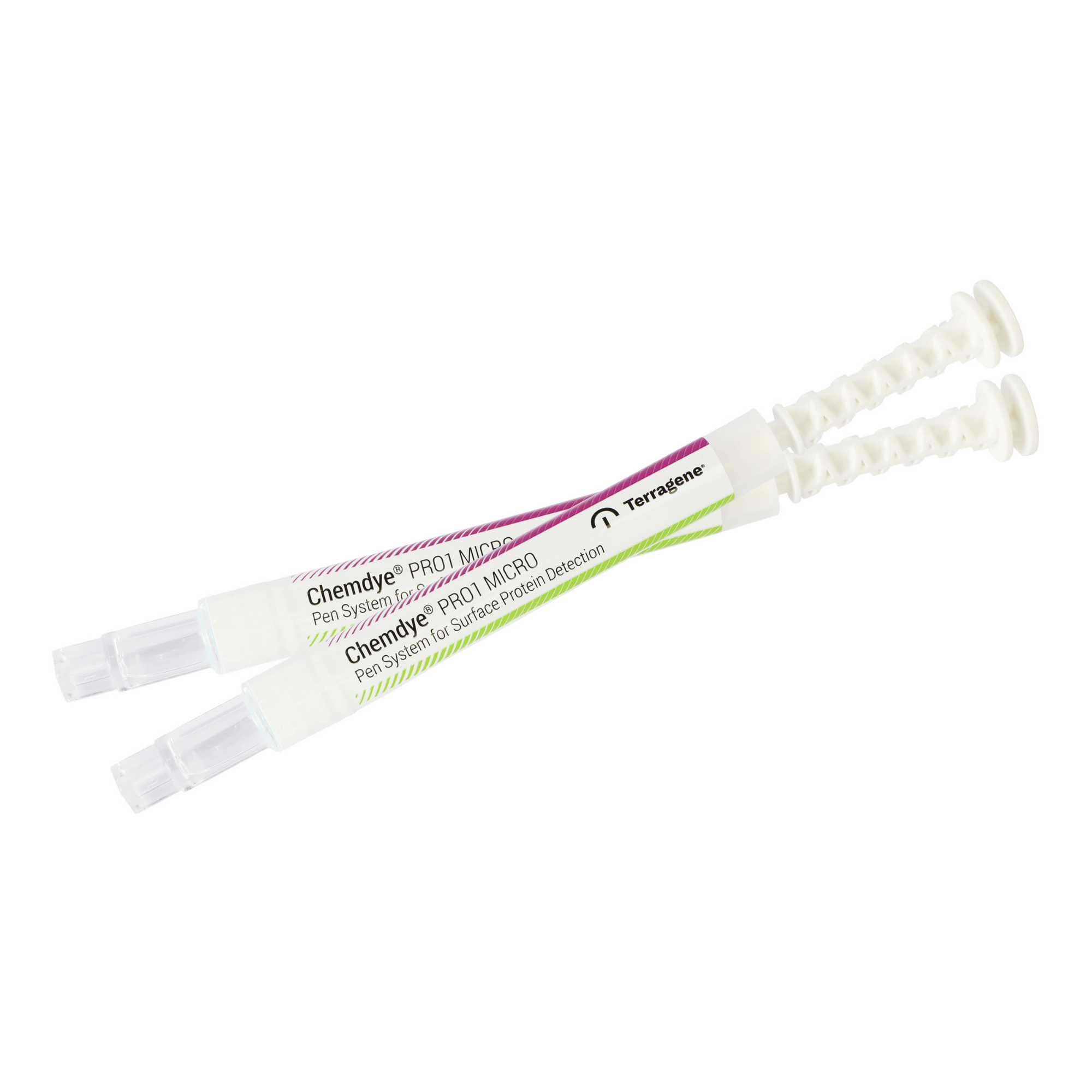

High sensitivity pen system for quantification of surface proteins

SKU: PRO1 MICRO Category: Tags ,
Additional information
Brand

Chemdye

Process

Hygiene Monitoring

Packaging

20, 100

Regulations

ISO 15883-1: 2006 / HTM 01-01: 2016 / HTM 01-05: 2013.

Description

PRO1 MICRO / High sensitivity pen system designed to detect and quantify proteins, allergens and reducing agents with high sensitivity on surfaces and difficult-to-access areas after the cleaning process.

Characteristics

-The system consists of a reactive solution and a high absorption swab, which allows the collection of samples from different types of surfaces with the same efficiency.

-Pen diameter: 12.4 mm; Pen length: 161 mm; Swab length: 111.9 mm.

-Limit of quantification: 1.0 µg of BSA.

-Sensitivity: 0.3 μg of BSA.

-Qualitative analysis: Incubate using the Bionova® IC10/20 incubator (temperature: 60± 2 º°C; 15 minutes) and interpret visually by using the reference guide available inside the product€™s box.

-Quantitative analysis: Using the Bionova® IC10/20FR, Bionova® IC10/20FRLCD or Bionova® MiniPro auto-reader incubators. Read the instructions for use of the device previously.

Incubation time: using the Bionova® IC10/20FR or the Bionova® IC10/20FRLCD auto-reader incubators: 15 minutes; using the Bionova® MiniPro auto-reader incubators: 10 minutes. Incubation range: 60± 2 °C.

Do not open until use. Do not reuse. Do not touch the swab or the inside of the device with your hands. Wear gloves, surgical mask and other hygiene measures.

Do not freeze. High concentrations of alkaline detergents may cause false negative results in some cases. Hydrogen peroxide-based disinfectants may cause a false positive color change reaction.

Although Chemdye® PRO1 MICRO has high sensitivity, it is not a microbiological monitoring device, and the surfaces should not be considered sterile according to the results obtained.

Description

PRO1 MICRO / High sensitivity pen system designed to detect and quantify proteins, allergens and reducing agents with high sensitivity on surfaces and difficult-to-access areas after the cleaning process.

Characteristics

-The system consists of a reactive solution and a high absorption swab, which allows the collection of samples from different types of surfaces with the same efficiency.

-Pen diameter: 12.4 mm; Pen length: 161 mm; Swab length: 111.9 mm.

-Limit of quantification: 1.0 µg of BSA.

-Sensitivity: 0.3 μg of BSA.

-Qualitative analysis: Incubate using the Bionova® IC10/20 incubator (temperature: 60± 2 º°C; 15 minutes) and interpret visually by using the reference guide available inside the product€™s box.

-Quantitative analysis: Using the Bionova® IC10/20FR, Bionova® IC10/20FRLCD or Bionova® MiniPro auto-reader incubators. Read the instructions for use of the device previously.

Incubation time: using the Bionova® IC10/20FR or the Bionova® IC10/20FRLCD auto-reader incubators: 15 minutes; using the Bionova® MiniPro auto-reader incubators: 10 minutes. Incubation range: 60± 2 °C.

Do not open until use. Do not reuse. Do not touch the swab or the inside of the device with your hands. Wear gloves, surgical mask and other hygiene measures.

Do not freeze. High concentrations of alkaline detergents may cause false negative results in some cases. Hydrogen peroxide-based disinfectants may cause a false positive color change reaction.

Although Chemdye® PRO1 MICRO has high sensitivity, it is not a microbiological monitoring device, and the surfaces should not be considered sterile according to the results obtained.
