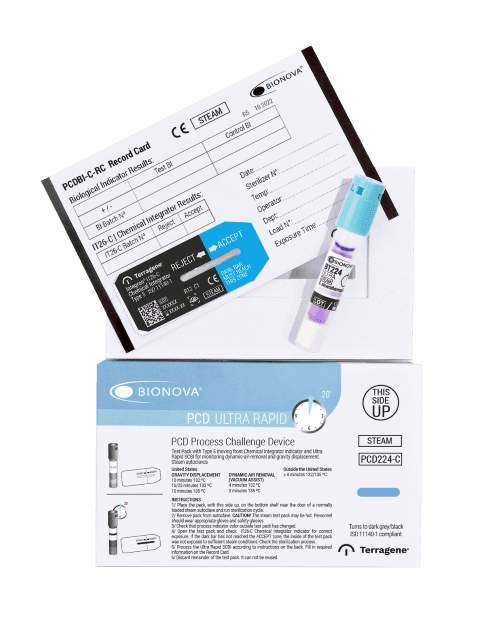

Process Challenge Device

20min Steam Test Pack (with moving front integrator)

Process Challenge Device for Steam sterilization processes with moving-front Type 5 Indicator and Bionova® Ultra Rapid Self-contained Biological Indicator. FDA-cleared.

SKU: PCD224-C

Category: Process Challenge Device

Brand: Bionova®

Description

Product type

PCD224‑C Steam Test Pack Kit — Process Challenge Device (PCD) for steam sterilization

Main application

For routine load release, especially for loads containing implants. For routine sterilizer monitoring. For periodic validation of the sterilizer (after installation, repair, relocation).

Key benefit

Detects inadequate air removal and steam penetration in pre‑vacuum and gravity displacement autoclaves (132–135 °C), ensuring reliable sterilization of critical loads. FDA-cleared

Technology / differentiator

PCD224‑C porous card system containing:
Bionova® BT224 Ultra Rapid SCBI (≥10⁶ Geobacillus stearothermophilus spores per vial)
Integron® IT26‑C Type 5 moving‑front chemical integrator with clear ACCEPT/REJECT zones for easy interpretation
PCD224‑C‑RC self‑adhesive Record Card for sterilization cycle documentation
External Process Indicator (Type 1): light blue → grey
SCBI label with steam‑reactive ink: pink → brown

Compatibility / usage environment

For steam sterilization only; suitable for healthcare, food, pharmaceutical, and medical industries
