Reusable housing
The Helix Plus plastic housing can be used for up to 250 cycles.
Chemical Indicator
New to market

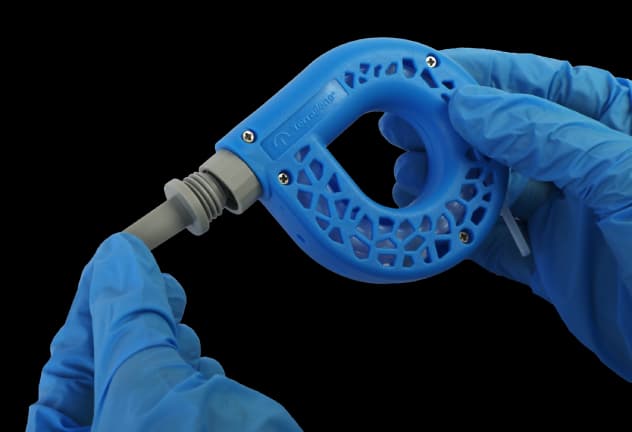

Helix Plus Kit for steam sterilization processes
What is the evolved
Helix Plus Kit?
Chemdye® Helix Plus Kit is a Type 2 chemical indicator system with a reusable Process Challenge Device (PCD) designed for steam sterilization monitoring in cycles involving hollow loads and devices with narrow lumens. It helps monitor air removal and steam penetration in challenging sterilization conditions.
Hollow, complex and minimally invasive devices are increasingly common in CSSDs. Residual air, vacuum leaks and non-condensable gases can interfere with effective steam penetration, while quality and traceability requirements continue to increase.

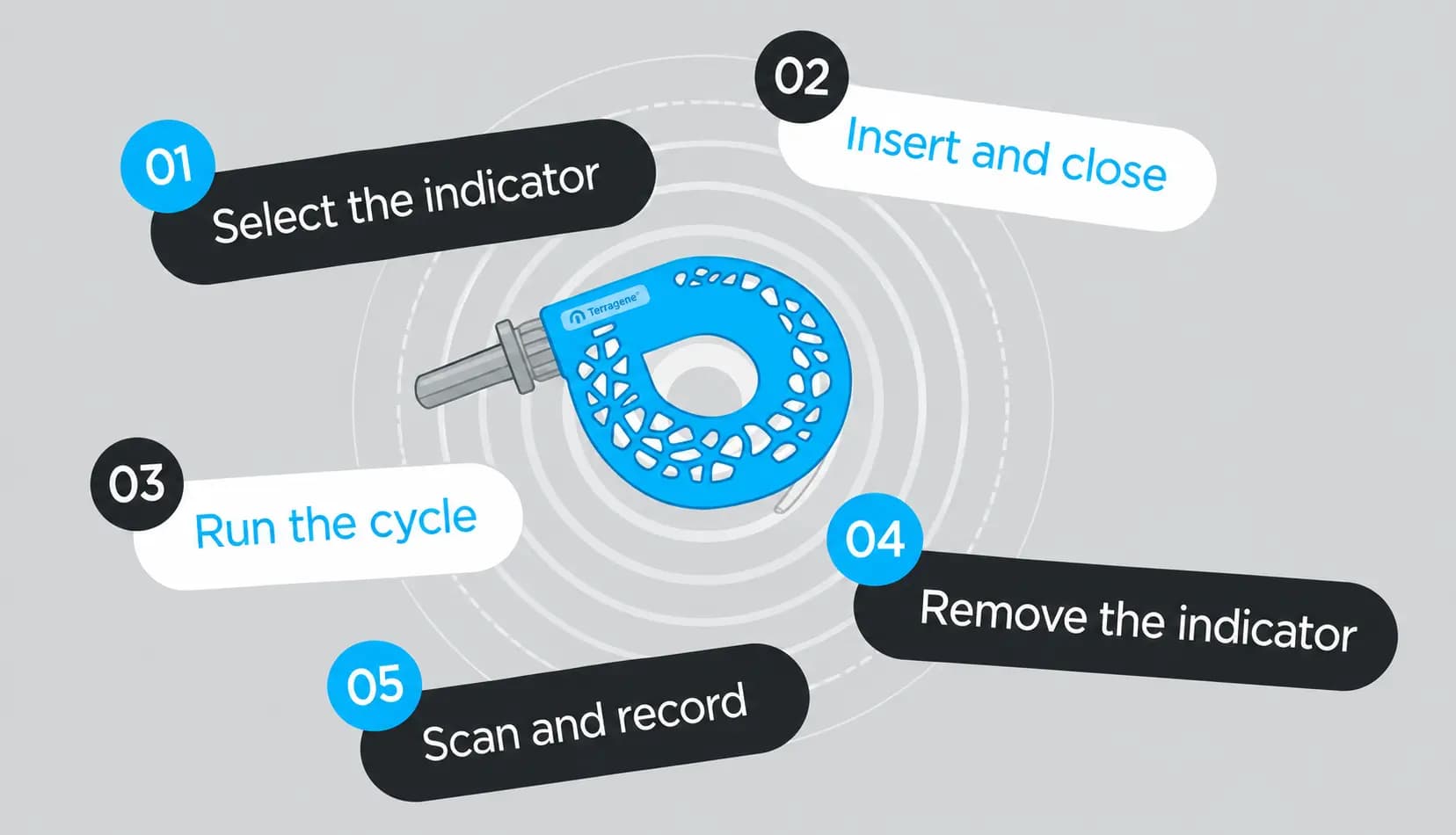

A new experience in Helix monitoring: Helix Plus Kit brings a renewed and connected approach to steam sterilization monitoring, combining a reusable PCD, PCD-A Type 2 chemical indicators and digital traceability tools. Designed for today’s sterilization workflows. Select the PCD-A chemical indicator according to your steam sterilization cycle:
- PCD-A-3.5Y: designed for 3.5-minute cycles at 134 °C.
- PCD-A-5.3Y: designed for 5.3-minute cycles at 134 °C or 15-minute cycles at 121 °C.
- PCD-A-7.0Y: designed for 7-minute cycles at 134 °C or 20-minute cycles at 121 °C.
Designed for narrow-lumen devices.
Why choose the Helix Plus Kit?
Type 2 Chemical Indicators

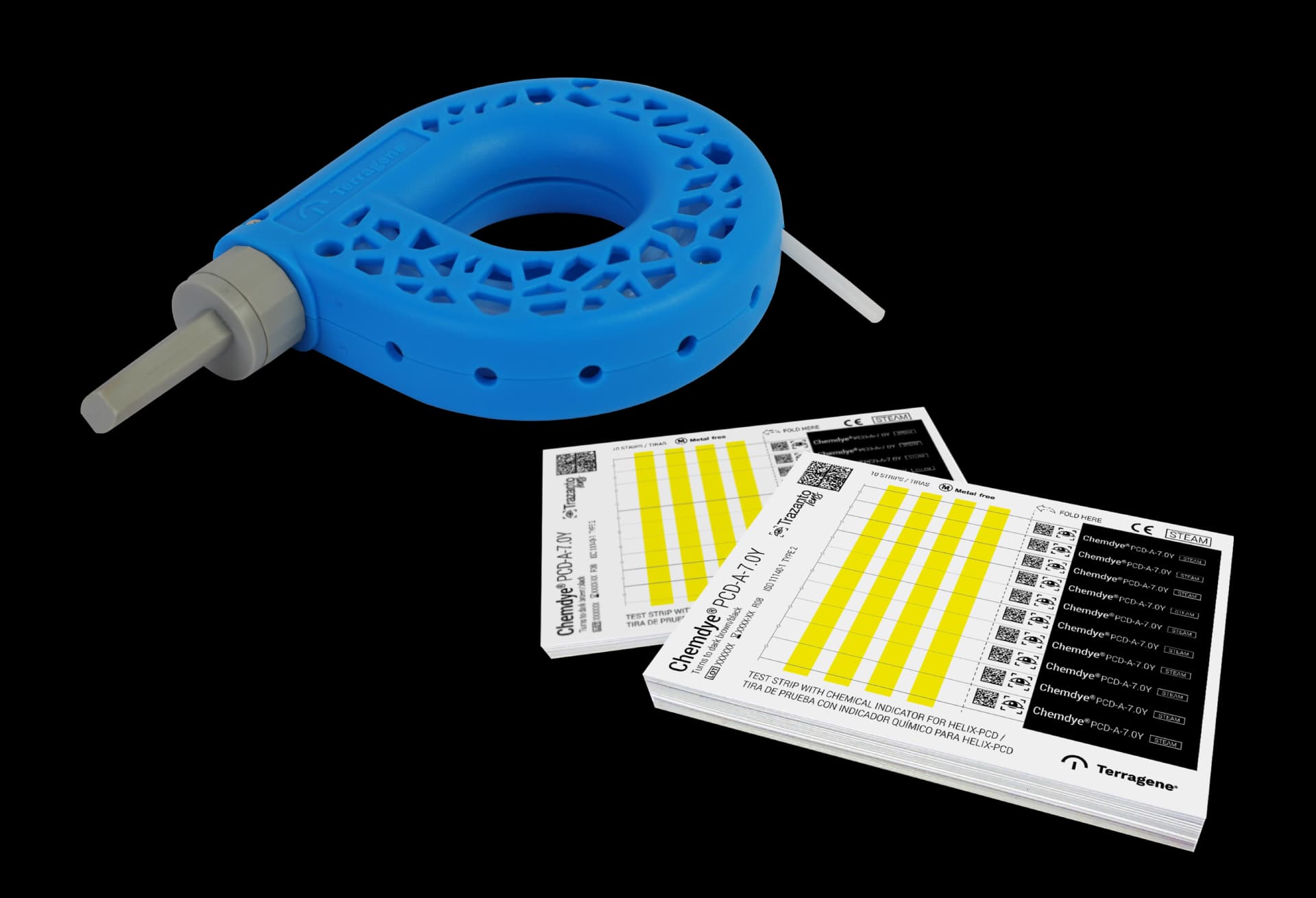

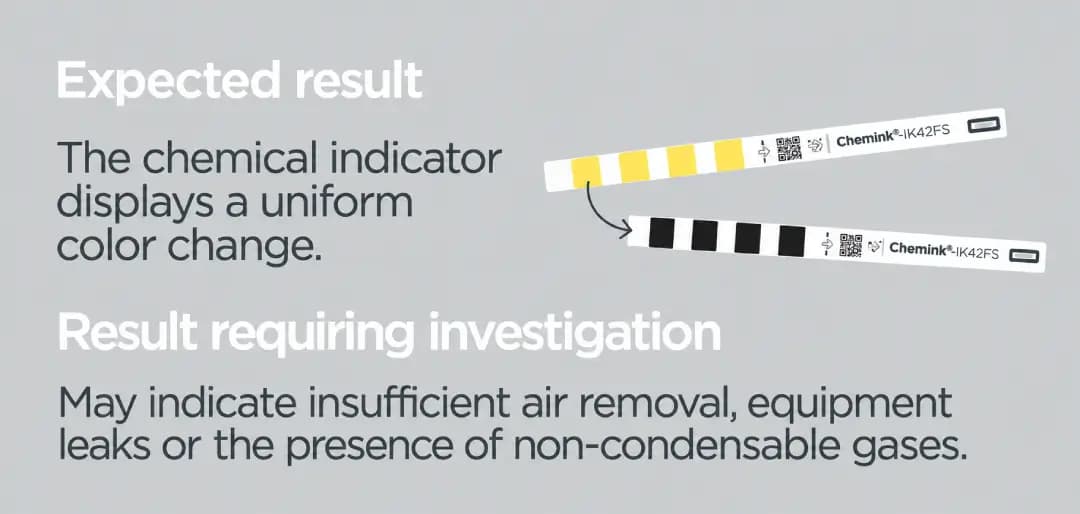

PCD-A strips are a Type 2 chemical indicator, self-adhesive and printed with indicator ink, turning from yellow to dark brown/black.
Regulatory Compliance
Designed under Quality Management System standards ISO 13485:2016/EN ISO 13485:2016, ISO 11140-1:2014, and ISO 11140-6:2022.
Multiple Cycle Times
Available for steam sterilization cycles of 3.5, 5.3, or 7.0 minutes at 134 °C, with 5.3Y and 7.0Y variants also validated at 121 °C.
5-Year Shelf Life
The shelf life of the PCD-A chemical indicators is 5 years.

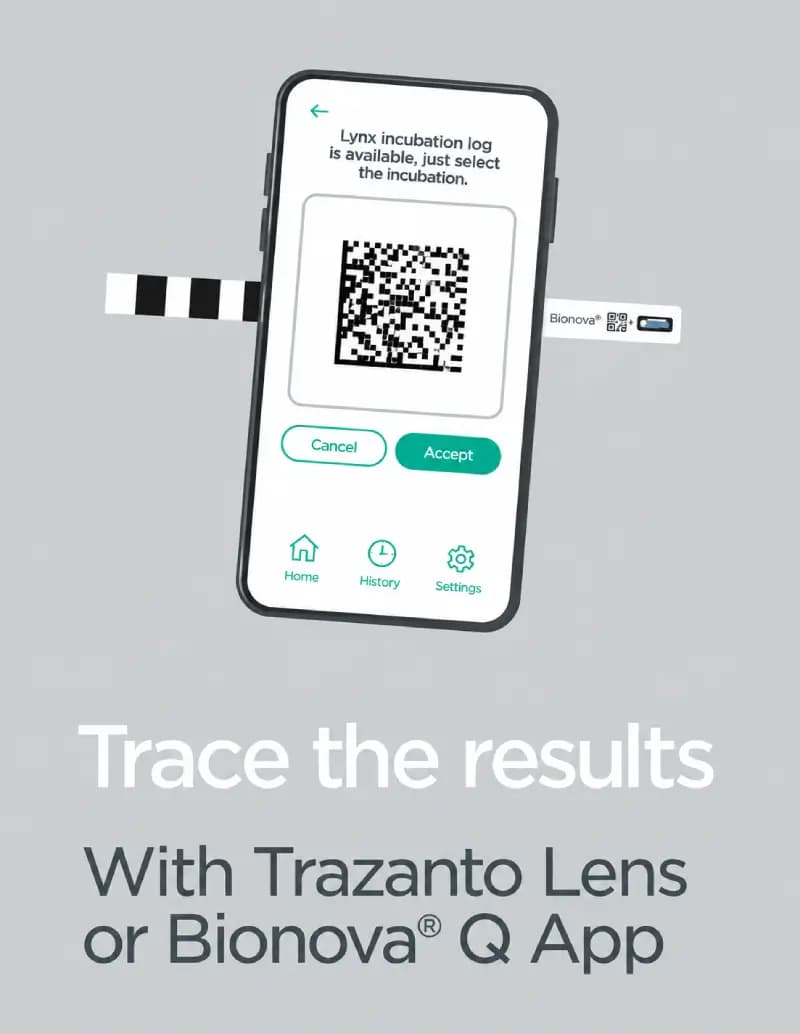

Digital Traceability
Data Matrix identification. Compatible with Trazanto® Lens. Integrated with Bionova® Q App.
The next generation of Helix monitoring.
Sterilization loads are evolving. Monitoring must evolve with them.
