Start Up Kit- EtO

SKU: SKEO Category: Tag:
Brand

Terragene

Process

Ethylene Oxide

Description

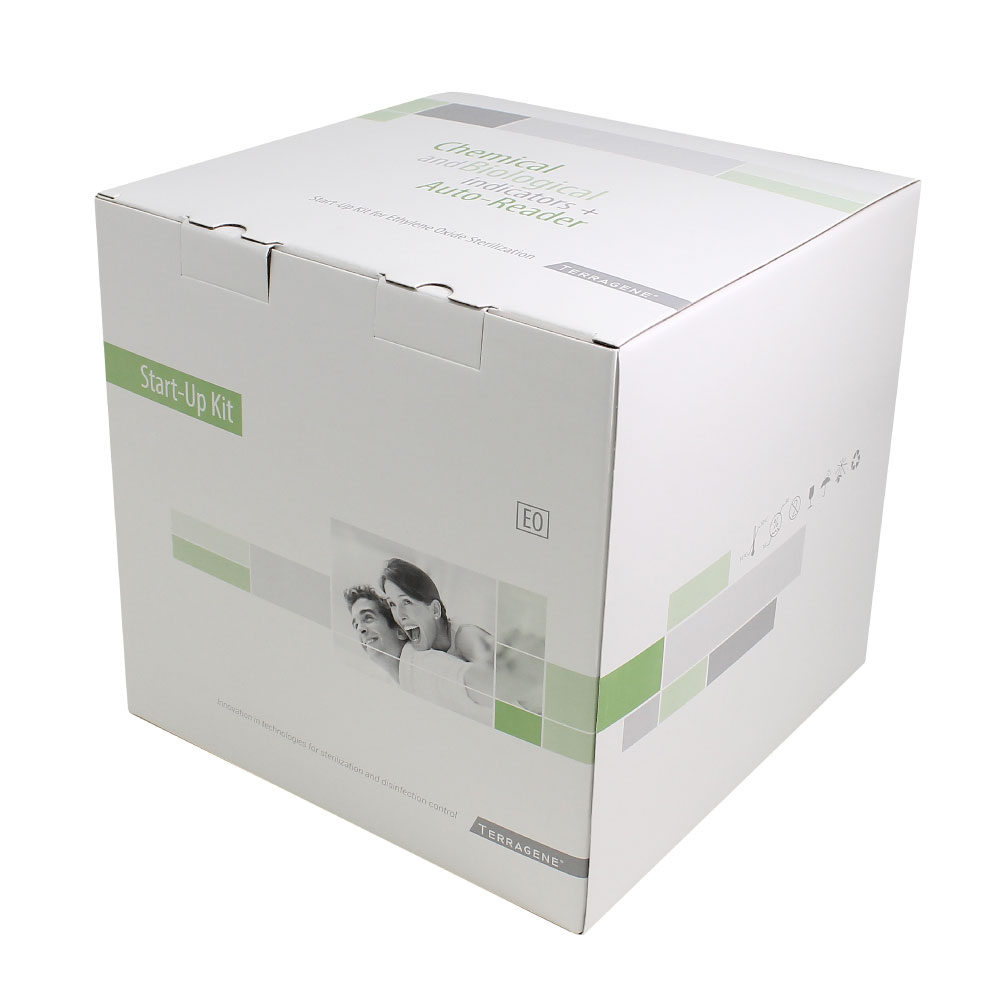

SKEO / Set of Chemical Indicators + Biological Indicators + MiniBio Auto-Reader Incubator.

Bionova® MiniBio Auto-Reader Incubator

3 metal positions (38 mm deep, 9 mm diameter) to incubate

Rapid/Super Rapid/Ultra Rapid Fluorescence Readout Self-contained biological indicators.

1 ampoule crusher.

Special hole for external thermometer.

Incorporated top cap.

Dual Temperature System: Allows selecting between two different incubation temperatures (37 °C and 60 °C).

USB connection for registering results in a PC through Reading and Traceability Software.

Allows incubation of 3 indicators simultaneously, in different incubation times, at the same temperature.

Thermal Printer to record results.

Sound alarm for event indication.

Detection and automatic cancellation of the fluorescence reading of the biological indicator.

Fluorescence reading wavelength: ~ 460 nm.

Firmware update by the user.

Dimensions: 180 mm high, 154 mm wide and 105 mm deep. Voltage range: 100 €“ 240 V AC.

SKEO

Cintape®, Chemdye® and Integron®

Chemical Indicators + Bionova®

Biological Indicators + Bionova®

MiniBio Auto-Reader Incubator Kit

For Ethylene Oxide sterilization cycles control

Power: 28 W.

Frequency: 50-60 Hz.

Bionova® BT10

Self-Contained Biological Indicator. 106 Bacillus atrophaeus ATCC 9372 spores per vial. Incubation at (37 ± 2) °C for 48 hours (maximum). Positive growth results (failure in the sterilization process): Culture medium turns to yellow.

Bionova® BT110

Self-Contained Biological Indicator.

106 Bacillus atrophaeus ATCC 9372 spores per vial. Rapid Readout Fluorescence System. Final fluorescence reading is performed after 4-hour incubation at (37 ± 2) °C. An optional visual pH color change confirmation could be made after incubation for 48 hours at (37 ± 2) °C.

If sterilization process has not been successful, culture medium will change to a greenish color first, and then to yellow during incubation at (37 ± 2) °C, thus showing the presence of living spores. If sterilization process is successful culture medium will remain blue after the incubation process.

7-day readout for visual confirmation by color change is optional and not intended to be routinely performed; it is an initial validation of the 4 hour-reading. Fluorescence results may be compared to the 7-day visual reading. NOTE: if 7-day readout is performed, a humidified environment will be required to avoid medium dry out.

Bionova® BT40

Spore Strip

106 Bacillus atrophaeus ATCC 9372 spores per strip. The spore strip should be tested in a suitable culture medium at (37 ± 2) °C. We suggest the use of Bionova® MC1030-2 or MC1020-2 culture media to final reading in 48 hours.

Bionova® MC1030-2 Sterile growth medium is specially formulated for use with our Bionova® products (also suitable for other brand products).

Growth medium color: blue

Plastic tube: 68 mm high, 10 mm diameter.

Medium volume: 2 ml For germination and growth of Bacillus atrophaeus ATCC 9372 and Bacillus subtilis ATCC35021 bacterial spores. Incubation conditions: 48 hours (maximum) at (37 ± 2) °C. Medium turns to yellow when spores grow.

Cintape® CT10

Type 1 Chemical Indicator.

Roll of self-adhesive tape printed with indicator ink..

Size: 50 m x 18 mm.

Initial color: orange.

Final color: green.

100 % Toxic Heavy Metal free

Chemdye® CD16

Type 4 Multivariable process Indicator.

Double punched card strips printed with indicator ink.

Size: 200 x 15 mm

Initial color: Púrple/brown

Final color: Green

100 % Toxic Heavy Metal free

Integron® IT12

Type 5 Chemical Integrator.

Card printed with indicator ink, laminated on the back side.

Size: 60 mm x 25 mm

Level 1 €“ Red: Exposure level, it turns to yellow to indicate the exposure to the process but it does not assure that the conditions indicated in the integrator have been met (UNSAFE condition).

Level 2 €“ Purple/Brown: Integration level, it turns to green thus indicating that conditions indicated in the integrator have been met.

These conditions are calibrated with the kill time of a 106 Bacillus atrophaeus spores population, calculated in BIER (Biological Indicator Evaluator Resistometer). This is called SAFE condition. Conditions: EO 600 mg/l, RH 60 %, 54 ºC.

100 % Toxic Heavy Metal free.
